Oppo F5 review

GSMArena team, 22 November 2017.

Display

We already praised the Oppo F5 for its slim front bezels. The company's choice of a FullHD ultra-wide panel, over a cheaper 720p one is also appreciated. Granted, the F5 is far from the only option out there to ship with the trendy new aspect and 1080p resolution in the sub EUR 350 price group. There is the Huawei Mate 10 Lite, also the Honor 7X and the LG Q6.

Oppo F5 review

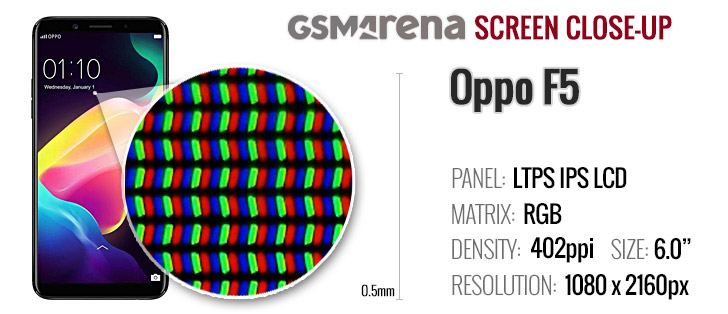

So, there is no real exclusivity to Oppo's 6-inch, LTPS IPS LCD display. It is still a solid panel, though. With 402 ppi density, it looks perfectly sharp. On a pixel level, we find a standard RGB arrangement.

Oppo F5 review

Performance-wise, it has excellent contrast, thanks to really deep backs and trumping most everything else in its price bracket, shy of the Super AMOLED Samsung Galaxy J7 Pro. It scores top marks in brightness as well.

Display test 100% brightness
Black, cd/m2 White, cd/m2 Contrast ratio
Xiaomi Mi A1 0.351 551 1570
Samsung Galaxy J7 Pro (Max Auto) 0 539
Xiaomi Mi Max 2 0.401 519 1294
vivo V7+ 0.289 515 1782
Oppo F3 Plus 0.343 509 1485
Nokia 6 (Global version) 0.364 484 1330
Xiaomi Redmi Note 4 (S625) 0.322 484 1503
Oppo F5 (Max Auto) 0.214 462 2159
Oppo F3 0.364 449 1234
Xiaomi Redmi Note 4 (X20) 0.38 439 1158
Xiaomi Mi Max 0.46 424 922
Oppo F5 0.192 422 2198
Samsung Galaxy J7 Pro 0 350

The Oppo F5 also has a max auto mode. In bright direct sunlight, its brightness can climb a bit higher still.

Sunlight legibility is also good. Nothing to phone home about, though.

Sunlight contrast ratio

  • Apple iPhone X
    5.013
  • OnePlus 5T
    4.789
  • Samsung Galaxy S8
    4.768
  • Samsung Galaxy S8+
    4.658
  • Samsung Galaxy S6 edge+
    4.615
  • Motorola Moto Z2 Play
    4.459
  • Oppo R11
    4.454
  • Samsung Galaxy S7 edge
    4.439
  • OnePlus 3
    4.424
  • Samsung Galaxy S7
    4.376
  • HTC One A9
    4.274
  • Samsung Galaxy Note7
    4.247
  • Samsung Galaxy A3
    4.241
  • Nokia 8
    4.239
  • Google Pixel 2 XL (pre-update)
    4.234
  • OnePlus 3T
    4.232
  • Google Pixel XL
    4.164
  • ZTE Axon 7
    4.154
  • Samsung Galaxy Note8
    4.148
  • Meizu Pro 7 Plus
    4.147
  • Samsung Galaxy S6 edge
    4.124
  • Samsung Galaxy A7 (2017)
    4.124
  • Huawei Mate 10 Pro (normal)
    4.096
  • Samsung Galaxy Note5
    4.09
  • Google Pixel 2 (pre-update)
    4.023
  • LG V30
    4.022
  • Huawei Nexus 6P
    4.019
  • Samsung Galaxy J7 Pro
    3.998
  • OnePlus X
    3.983
  • Vivo Xplay5 Elite
    3.983
  • Oppo R7s
    3.964
  • Apple iPhone 7
    3.964
  • Apple iPhone 8 (True Tone)
    3.957
  • Huawei P9 Plus
    3.956
  • Meizu Pro 6 Plus
    3.935
  • Lenovo Moto Z
    3.931
  • Samsung Galaxy A7 (2016)
    3.918
  • OnePlus 5
    3.914
  • Samsung Galaxy C5
    3.911
  • Samsung Galaxy C7
    3.896
  • Samsung Galaxy A5
    3.895
  • Samsung Galaxy J7 outdoor
    3.879
  • Samsung Galaxy J2 outdoor
    3.873
  • Samsung Galaxy A8
    3.859
  • Sony Xperia XZs
    3.818
  • Samsung Galaxy A9 (2016)
    3.817
  • Motorola Moto X (2014)
    3.816
  • Samsung Galaxy J7 (2017)
    3.812
  • Samsung Galaxy A5 (2017)
    3.804
  • Samsung Galaxy J7 (2016) outdoor mode
    3.802
  • Xiaomi Redmi Pro
    3.798
  • LG V20 Max auto
    3.798
  • Sony Xperia XZ
    3.795
  • Samsung Galaxy A5 (2016)
    3.789
  • Apple iPhone 6s
    3.783
  • Meizu Pro 5
    3.781
  • Microsoft Lumia 650
    3.772
  • Xiaomi Mi 6
    3.767
  • Sony Xperia XZ1
    3.765
  • Samsung Galaxy J7 (2016)
    3.756
  • Sony Xperia XZ1 Compact
    3.729
  • Apple iPhone 8 Plus (True Tone)
    3.725
  • Oppo F1 Plus
    3.709
  • Vivo X5Pro
    3.706
  • Sony Xperia X Compact
    3.694
  • Samsung Galaxy A3 (2017)
    3.688
  • Apple iPhone SE
    3.681
  • Huawei Mate 9
    3.68
  • Samsung Galaxy A7
    3.679
  • Meizu PRO 6
    3.659
  • BlackBerry Priv
    3.645
  • Sony Xperia XA1 Ultra
    3.597
  • Apple iPhone 7 Plus
    3.588
  • LG G6
    3.556
  • Apple iPhone 6s Plus
    3.53
  • Motorola Moto Z Play
    3.526
  • Samsung Galaxy J3 (2016)
    3.523
  • Samsung Galaxy J3 (2016) outdoor mode
    3.523
  • Acer Jade Primo
    3.521
  • Microsoft Lumia 950
    3.512
  • Oppo R7 Plus
    3.499
  • nubia Z11
    3.466
  • Huawei P10 Plus
    3.456
  • HTC U Ultra
    3.453
  • Samsung Galaxy J7
    3.422
  • Meizu MX5
    3.416
  • LG V20
    3.402
  • Huawei P10
    3.379
  • Samsung Galaxy J5 (2016)
    3.378
  • Oppo R9s
    3.352
  • Honor 8 Pro
    3.341
  • Oppo R7
    3.32
  • Lenovo P2
    3.316
  • Honor 9
    3.289
  • Xiaomi Mi 5s
    3.276
  • Nokia 5
    3.261
  • Nokia 6 (Chinese version)
    3.244
  • Nokia 6 (Global version)
    3.238
  • Samsung Galaxy J2
    3.235
  • Sony Xperia X Performance
    3.234
  • Xiaomi Mi Note 2
    3.228
  • Motorola Moto X Play
    3.222
  • Oppo F3 Plus
    3.218
  • Huawei Mate 9 Pro
    3.206
  • Huawei P9
    3.195
  • Xiaomi Mi Mix 2
    3.19
  • ZTE Nubia Z17
    3.159
  • Lenovo Vibe Shot
    3.113
  • Motorola Moto X Force
    3.105
  • LG Nexus 5X
    3.092
  • HTC U11
    3.089
  • Huawei Mate S
    3.073
  • Microsoft Lumia 640 XL
    3.065
  • Sony Xperia XA1
    3.012
  • Sony Xperia L1
    2.994
  • Sony Xperia X
    2.989
  • Huawei P10 Lite
    2.974
  • Samsung Galaxy Note
    2.97
  • Sony Xperia Z1
    2.95
  • Huawei Mate 8
    2.949
  • Xiaomi Redmi 4
    2.92
  • Xiaomi Redmi 3S
    2.913
  • Sony Xperia XA Ultra
    2.906
  • LG G5
    2.905
  • HTC One S
    2.901
  • Xiaomi Redmi 3s Prime
    2.893
  • Xiaomi Mi 5s Plus
    2.884
  • Sony Xperia XZ Premium (sRGB)
    2.877
  • Sony Xperia XZ Premium
    2.877
  • Sony Xperia Z5
    2.876
  • Nokia 3
    2.871
  • Microsoft Lumia 550
    2.851
  • Lenovo Moto M
    2.813
  • Xiaomi Redmi 3 Pro
    2.803
  • Sony Xperia Z5 compact
    2.784
  • Meizu MX6
    2.751
  • LG V10
    2.744
  • Huawei Mate 10 (normal)
    2.742
  • Xiaomi Redmi 3
    2.735
  • Xiaomi Redmi Note 4 (S625)
    2.714
  • Meizu M5
    2.71
  • Sony Xperia M5
    2.69
  • Xiaomi Mi A1
    2.689
  • Huawei P9 Lite
    2.679
  • Xiaomi Redmi 4 Prime
    2.679
  • vivo V7+
    2.671
  • Vivo V3Max
    2.659
  • Xiaomi Mi Mix
    2.658
  • Oppo F5
    2.653
  • Doogee Mix
    2.642
  • Xiaomi Mi 4i
    2.641
  • Xiaomi Redmi 4a
    2.635
  • Xiaomi Mi 5X (Standard)
    2.616
  • Sony Xperia XA
    2.609
  • Motorola Moto G4 Plus
    2.582
  • Motorola Moto G4 Plus (max auto)
    2.582
  • Meizu M5s
    2.58
  • Xiaomi Mi 4c
    2.574
  • LeEco Le Max 2
    2.567
  • Microsoft Lumia 640
    2.563
  • Asus Zenfone 3 ZE552KL
    2.563
  • Xiaomi Mi Max 2
    2.561
  • Motorola Moto G 4G
    2.546
  • Lenovo Moto G4
    2.544
  • Lenovo K6 Note
    2.544
  • Oppo F1
    2.528
  • Sony Xperia Z5 Premium
    2.525
  • Huawei Honor 7 Lite / Honor 5c
    2.506
  • Sony Xperia M4 Aqua
    2.503
  • Oppo F1s
    2.481
  • Motorola Moto G
    2.477
  • Lenovo Vibe K5 Plus
    2.473
  • Huawei G8
    2.471
  • Huawei nova
    2.467
  • Lenovo Vibe K5
    2.459
  • Meizu m3 max
    2.447
  • Xiaomi Mi 5X (Auto)
    2.417
  • HTC 10 evo
    2.407
  • Huawei Honor 7
    2.406
  • Sony Xperia E5
    2.386
  • ZUK Z1 by Lenovo
    2.382
  • HTC 10
    2.378
  • Oppo F3
    2.376
  • vivo V5 Plus
    2.371
  • Meizu m1 note
    2.362
  • Huawei nova plus
    2.329
  • Razer Phone
    2.328
  • HTC One E9+
    2.305
  • Alcatel One Touch Hero
    2.272
  • Apple iPhone 4S
    2.269
  • Lenovo Vibe K4 Note
    2.254
  • Sony Xperia C5 Ultra
    2.253
  • Xiaomi Redmi Note 3 (MediaTek)
    2.249
  • Sony Xperia C4 Dual
    2.235
  • Xiaomi Mi Note
    2.234
  • Motorola Moto G (2014)
    2.233
  • LG Nexus 5
    2.228
  • Huawei P8
    2.196
  • Meizu M5 Note
    2.189
  • Huawei Honor 6
    2.169
  • Xiaomi Redmi Note 2
    2.166
  • OnePlus Two
    2.165
  • HTC One X
    2.158
  • LG Aka
    2.145
  • Xiaomi Redmi Note 4 (X20)
    2.145
  • Archos 50 Diamond
    2.134
  • Xiaomi Redmi Note
    2.119
  • Xiaomi Mi 4S
    2.095
  • Acer Liquid X2
    2.084
  • Huawei P8lite
    2.078
  • vivo V5
    2.059
  • Moto G 3rd gen max manual
    2.026
  • Xiaomi Mi 3
    2.001
  • Xiaomi Mi Max
    1.996
  • Sony Xperia E4g
    1.972
  • OnePlus One
    1.961
  • Meizu m3 note
    1.923
  • BlackBerry Leap
    1.892
  • Meizu m2 note
    1.892
  • HTC Butterfly
    1.873
  • Sony Xperia Z1 Compact
    1.772
  • ZTE Nubia Z9 mini
    1.759
  • Sony Xperia U
    1.758
  • Asus Zenfone Selfie
    1.68
  • Motorola Moto E (2nd Gen)
    1.675
  • ZTE Nubia Z9
    1.659
  • Jolla Jolla
    1.605
  • Motorola Moto E
    1.545
  • Sony Xperia M
    1.473
  • Sony Xperia L
    1.351
  • HTC Desire C
    1.3
  • Sony Xperia C
    1.283
  • Meizu MX
    1.221
  • Sony Xperia E
    1.215

Good color accuracy readings put the final touches, in what is shaping up to be a really solid phone display. While we have definitely seen better, an average deltaE of 5 and a maximum of 9.4 are still very good scores.

The F5's color pallet is actually pretty balanced overall. The biggest variance seems to come from the whites, which all have a distinct blue tint to them. Unfortunately, due to the lack of any color modes of white point tuning options, you are pretty much stuck with these colder tones on the F5.

Battery Life

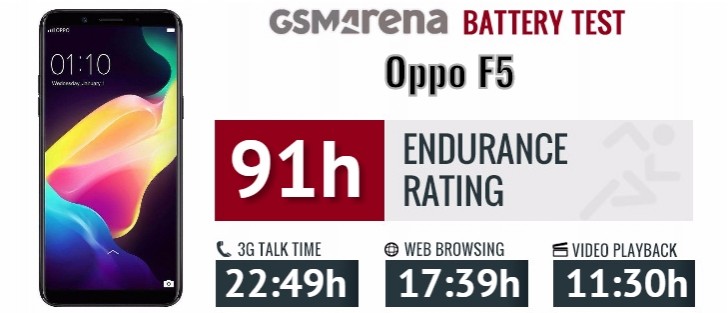

The Oppo F5 packs a decently sized 3,200 mAh battery, just like its F3 predecessor. It is not a battery beast, by any means, but to reiterate a previous point, the new plastic body has allowed Oppo to keep weight down at 152 grams, even with the same battery capacity and a larger display.

Also, we went into the battery test segment with high hopes for any potential endurance improvements by the new MediaTek Helio P23 chip. Still, we can't realistically expect an amazing difference over the Helio P20, since both are based on the same 16nm TSMC fabrication process.

As expected, the numbers show the new Helio P23 is just as frugal as its older sibling when it comes to battery life. It scored a great endurance rating of 91 hours, with good scores across the board. Well, video playback could use use some extra optimization. But other than that, a very good score.

Oppo F5 review

Also, one that falls in line well with expectation. For instance, the Sony Xperia XA1 Plus leveraged its Helio P20 chipset and 3,420 mAh nattery well enough to score a 102 hour endurance rating. The slight bump in battery capacity mostly went towards improving standby performance. All the on-screen tests, as well as the call one come really close to what we measured on the Oppo, so a nice consistent and impressive showing from MediaTek's 16nm mid-range chips overall.

Charging on the F5 is limited to a simple 5V@2A current. Just like with the F3, VOOC was apparently way out of budget. It is definitely missed, though, since Oppo's fast charging solution remains one of the best on the market.

With its bundled 5V@2A charger, the Oppo F5 goes from 0% to 49% in half an hour. Not bad.

Connectivity

While the new Helio P23 comes really close to the older P20 in CPU terms, it does offer a few notable improvements in the connectivity department. With it, MediaTek wants to somewhat bridge the gap between its higher-end solutions, lithe the Helio X30 and the mid-range, by providing some meaningful network improvements.

The Helio P23 supports Dual 4G LTE and DSDS (Dual SIM, Dual standby) on both its slots, but also Dual VoLTE/ViLTE. That means both SIM cards can take advantage of high bandwidth data transfer and crisp audio calls. Given the proper PR and exposure, this could serve as a major selling point for the Oppo F5, especially in markets with a 4G-only infrastructure.

Oppo F5 review

As far as specific numbers go, the Helio P23 is rated at Cat.6 LTE, with a theoretical maximum of 300 Mbps down. You also get 20Mz + 20Mz carrier aggregation. According to our findings, there are actually two variants of the Oppo F5. One has a total of 12 LTE bands and four HSPDA ones, while the other has 9 and 3, respectively.

On the local side of things, the Oppo F5 has Wi-Fi a/b/g/n, Bluetooth 4.2 and LE profiles. There are also a GPS and an FM radio receiver. No NFC, though. The microUSB port does support OTG (you do have to toggle it in the settings), but is only capable of USB 2.0 transfer speeds.
