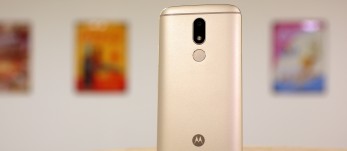

Motorola Moto M
Specifications
| Network | |
|---|---|
| Technology | GSM / CDMA / HSPA / LTE |
| 2G bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| CDMA 800 / 1900 | |
| 3G bands | HSDPA 850 / 900 / 1900 / 2100 |
| 4G bands | 1, 3, 5, 7, 8, 20, 38, 40, 41 |
| Speed | HSPA 42.2/5.76 Mbps, LTE (2CA) Cat6 300/50 Mbps |
| Launch | |
|---|---|
| Announced | 2016, November. Released 2016, November |
| Status | Discontinued |
| Body | |
|---|---|
| Dimensions | 151.4 x 75.4 x 7.9 mm (5.96 x 2.97 x 0.31 in) |
| Weight | 163 g (5.75 oz) |
| Build | Glass front, aluminum back, aluminum frame |
| SIM | Nano-SIM + Nano-SIM |
| Display | |
|---|---|
| Type | IPS LCD |
| Size | 5.5 inches, 83.4 cm2 (~73.1% screen-to-body ratio) |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~401 ppi density) |
| Platform | |
|---|---|
| OS | Android 6.0.1 (Marshmallow) |
| Chipset | Mediatek MT6755 Helio P10 (28 nm) Mediatek MT6755T Helio P15 (28 nm) - India |
| CPU | Octa-core 1.95 GHz Cortex-A53 Octa-core 2.2 GHz Cortex-A53 - India |
| GPU | Mali-T860MP2 |
| Memory | |
|---|---|
| Card slot | microSDXC (uses shared SIM slot) |
| Internal | 32GB 3GB RAM, 64GB 4GB RAM |
| eMMC 5.1 | |
| Main Camera | |
|---|---|
| Single | 16 MP, f/2.0, 1.0µm, PDAF |
| Features | LED flash, panorama |
| Video | 1080p@30fps |
| Selfie Camera | |
|---|---|
| Single | 8 MP, f/2.0, 1/4.0", 24mm (wide), 1.12µm |
| Video | 1080p@30fps |
ADVERTISEMENT
| Sound | |
|---|---|
| Loudspeaker | Yes |
| 3.5mm jack | Yes |
| Comms | |
|---|---|
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct |
| Bluetooth | 4.1, A2DP, LE, aptX |
| Positioning | GPS, GLONASS, BDS |
| NFC | No |
| Radio | FM radio |
| USB | USB Type-C, OTG |
| Features | |
|---|---|
| Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass |
| Battery | |
|---|---|
| Type | Li-Po 3050 mAh, non-removable |
| Charging | 10W wired |
| Misc | |
|---|---|
| Colors | Gold, Gray, Silver |
| Models | XT1663, XT1662 |
| SAR | 0.33 W/kg (head) |
| Price | About 190 EUR |
| Tests | |
|---|---|
| Performance | GFXBench: 2.7fps (ES 3.1 onscreen) |
| Display | Contrast ratio: 1417 (nominal), 2.813 (sunlight) |
| Camera | Photo / Video |
| Loudspeaker | Voice 64dB / Noise 72dB / Ring 72dB |
| Audio quality | Noise -90.5dB / Crosstalk -91.4dB |
| Battery (old) | Endurance rating 55h |
