ZTE Axon 20 5G review

World's first under-display camera

GSMArena Team, 22 December 2020.

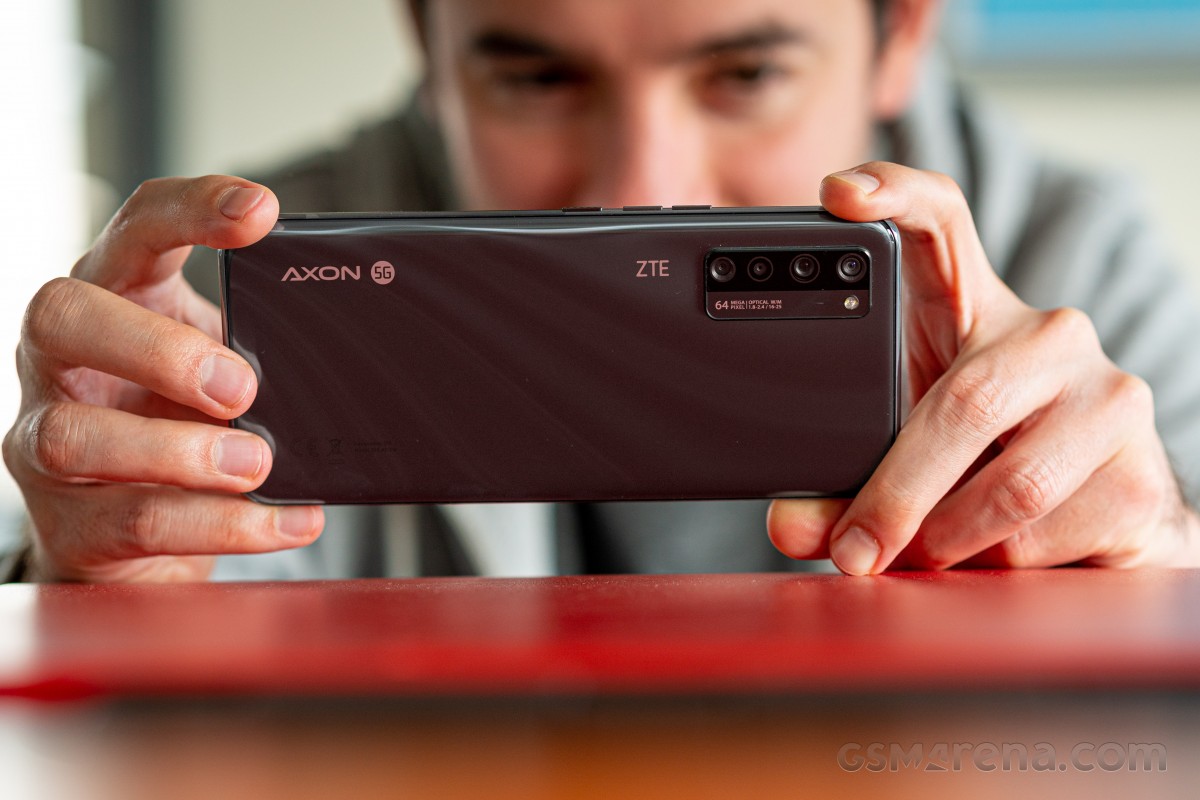

Four cameras on the back, one hidden on the front

The camera doing the heavy lifting on the back employs the popular 64MP sensor with native pixel binning, producing effectively 16MP stills. This sensor is pretty big - 1/1.72" in size and features 0.8µm pixels. It's paired with an f/1.8 lens.

Zte Axon 20 5g review

The ultra-wide unit is fairly low resolution - just 8MP with f/2.2 aperture and offers a 120-degree field of view, which fairly wide. And as for the other two sensors - there's one for depth information, and the other is used solely for macro photography.

The selfie camera sitting behind the display is also high-resolution, but this one isn't binning the pixels, unlike the main sensor. It outputs 32MP images and is paired with an f/2.0 aperture.

Camera menus

The camera app is pretty straightforward, and we didn't see any noticeable deviation from the usual navigation. Swiping left and right switches between modes, and there are the ones that have additional sub-modes, such as Video, for example. The additional settings are accessed by tapping on the gear icon at the upper part of the viewfinder.

Camera menus - Zte Axon 20 5g review Camera menus - Zte Axon 20 5g review Camera menus - Zte Axon 20 5g review Camera menus - Zte Axon 20 5g review
Camera menus

Switching between different focal lengths is a bit tricky, though. Oftentimes when tapping on the ultra-wide, for example, the zoom wheel pops up. The three-camera modes are either too close together, or the hitboxes are a bit off.

Camera menus - Zte Axon 20 5g review Camera menus - Zte Axon 20 5g review Camera menus - Zte Axon 20 5g review
Camera menus

Daylight samples

Main camera

As long as the light is sufficient, the main camera can produce sharp and detailed images with pretty accurate colors as well. Noise is a frequent sighting, however. The good news is that it's hard to notice if you aren't looking close enough, and it can be visible only on uniform backgrounds. There are also some sharpening halos here and there, but again, they can only be noticed if you are pixel-peeping. Overall, we like the added sharpness during processing as it gives the images a much cleaner look.

Main camera daylight samples - f/1.9, ISO 100, 1/212s - Zte Axon 20 5g review Main camera daylight samples - f/1.9, ISO 100, 1/201s - Zte Axon 20 5g review Main camera daylight samples - f/1.9, ISO 100, 1/125s - Zte Axon 20 5g review
Main camera daylight samples - f/1.9, ISO 100, 1/150s - Zte Axon 20 5g review Main camera daylight samples - f/1.9, ISO 100, 1/194s - Zte Axon 20 5g review Main camera daylight samples - f/1.9, ISO 100, 1/144s - Zte Axon 20 5g review
Main camera daylight samples - f/1.9, ISO 209, 1/100s - Zte Axon 20 5g review Main camera daylight samples - f/1.9, ISO 100, 1/238s - Zte Axon 20 5g review
Main camera daylight samples

Another rather consistent issue we had with the main camera is the soft patches on most photos. You can see that in some of the scenes where there is foliage, the grass gets murky towards the left half of the picture.

Main camera daylight samples - f/1.9, ISO 488, 1/25s - Zte Axon 20 5g review Main camera daylight samples - f/1.9, ISO 100, 1/238s - Zte Axon 20 5g review
Main camera daylight samples - f/1.9, ISO 100, 1/101s - Zte Axon 20 5g review Main camera daylight samples - f/1.9, ISO 578, 1/33s - Zte Axon 20 5g review
Main camera daylight samples

Unfortunately, the conditions in which we took the daylight photo samples don't allow us to comment on the camera's HDR capabilities. The phone is doing a rather good job of balancing out the highlights and shadows given the thick overcast from what we see.

2x zoom

We are mostly satisfied with the 2x zoom photos, even though they are a crop from the main sensor and then upscaled back to 16MP. Of course, don't expect super sharp photos, but for general social media posting and if you are looking at them mostly on the phone's screen, they will do just fine. Zooming in on these samples reveals that the 2x zoom mode amplifies the main camera's pitfalls - the sharpening halos are more visible while noise is aplenty.

2x zoom daylight samples - f/1.9, ISO 100, 1/171s - Zte Axon 20 5g review 2x zoom daylight samples - f/1.9, ISO 100, 1/179s - Zte Axon 20 5g review 2x zoom daylight samples - f/1.9, ISO 125, 1/100s - Zte Axon 20 5g review
2x zoom daylight samples - f/1.9, ISO 100, 1/160s - Zte Axon 20 5g review 2x zoom daylight samples - f/1.9, ISO 213, 1/100s - Zte Axon 20 5g review 2x zoom daylight samples - f/1.9, ISO 100, 1/212s - Zte Axon 20 5g review
2x zoom daylight samples - f/1.9, ISO 100, 1/221s - Zte Axon 20 5g review 2x zoom daylight samples - f/1.9, ISO 135, 1/100s - Zte Axon 20 5g review
2x zoom daylight samples

Ultra-wide camera

Just like all midrangers with an 8MP ultra-wide camera, the Axon 20 5G isn't turning any heads. Even in broad daylight, shots come out muddy, lack detail, and often bring too much noise into the scene. There's a bit of sharpening happening during processing, like on the primary camera, but this time around, it doesn't introduce any significant changes to the overall picture quality. In fact, sharpening halos stand out quite a bit.

Ultra-wide daylight samples - f/2.2, ISO 100, 1/463s - Zte Axon 20 5g review Ultra-wide daylight samples - f/2.2, ISO 100, 1/264s - Zte Axon 20 5g review Ultra-wide daylight samples - f/2.2, ISO 100, 1/231s - Zte Axon 20 5g review
Ultra-wide daylight samples - f/2.2, ISO 100, 1/463s - Zte Axon 20 5g review Ultra-wide daylight samples - f/2.2, ISO 100, 1/191s - Zte Axon 20 5g review Ultra-wide daylight samples - f/2.2, ISO 100, 1/355s - Zte Axon 20 5g review
Ultra-wide daylight samples - f/2.2, ISO 100, 1/157s - Zte Axon 20 5g review
Ultra-wide daylight samples

The overall color processing is the same as on the main camera, though, so expect close to real-life colors. The distortion correction algorithm is doing a really good job too. Objects closer to the edge of the frame appear fairly upright.

Macro camera

The macro camera has a fixed focus distance, which poses its own limitations, but the biggest one is the low resolution, 2MP sensor. Still, if you are patient enough, you could get some good close-up shots. Colors are vibrant, and the level of detail is surprisingly high. Just make sure you are shooting with enough light around for optimal results.

Macro samples - Zte Axon 20 5g review Macro samples - Zte Axon 20 5g review
Macro samples - Zte Axon 20 5g review Macro samples - Zte Axon 20 5g review
Macro samples

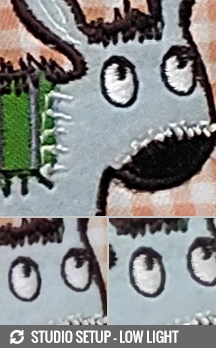

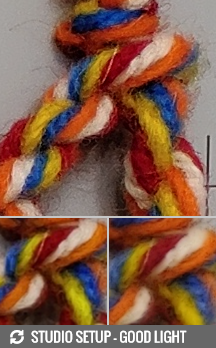

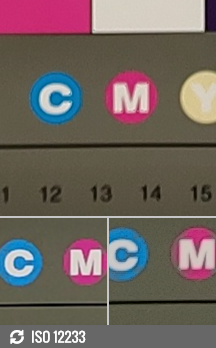

Here's how the Axon 20 5G fares against the competition in a more controlled environment.

Photo Compare Tool Photo Compare Tool Photo Compare Tool
ZTE Axon 20 5G vs OnePlus Nord and the Xiaomi Poco F2 Pro in our Photo compare tool

Low-light samples

Main camera

The first thing we've noticed is the competent HDR algorithm working even if there's no Night mode turned on. The light sources are well-contained, there's plenty of detail in the shadows, and the highlights are balanced quite well. Of course, like most midrangers in this price category, sharpness isn't great, and there's quite a bit of noise around. Interestingly, the level of detail is pretty high across the scenes.

Main camera low-light samples - f/1.9, ISO 369, 1/20s - Zte Axon 20 5g review Main camera low-light samples - f/1.9, ISO 1378, 1/14s - Zte Axon 20 5g review Main camera low-light samples - f/1.9, ISO 778, 1/17s - Zte Axon 20 5g review
Main camera low-light samples - f/1.9, ISO 438, 1/20s - Zte Axon 20 5g review Main camera low-light samples - f/1.9, ISO 631, 1/17s - Zte Axon 20 5g review
Main camera low-light samples

Additionally, we found the contrast just right, color reproduction is once again on point, and the color temperature just as accurate.

Main camera low-light samples - f/1.9, ISO 672, 1/17s - Zte Axon 20 5g review Main camera low-light samples - f/1.9, ISO 791, 1/17s - Zte Axon 20 5g review
Main camera low-light samples - f/1.9, ISO 406, 1/20s - Zte Axon 20 5g review Main camera low-light samples - f/1.9, ISO 522, 1/33s - Zte Axon 20 5g review
Main camera low-light samples

Night mode

To our surprise, the Night mode didn't bring any substantial benefits and only made us wait a couple of seconds to finish up the stacking and processing. The Night mode shots are rarely sharper and clearer, but they do look a lot brighter and with a bit less noise. There's no noticeable change in how the highlights are handled while the shadows are considerably brighter. Quite honestly, we liked the non-Night mode photos better, and the sky looks more natural there.

Main camera Night mode samples - f/1.9, ISO 363, 1/20s - Zte Axon 20 5g review Main camera Night mode samples - f/1.9, ISO 1556, 1/17s - Zte Axon 20 5g review Main camera Night mode samples - f/1.9, ISO 891, 1/17s - Zte Axon 20 5g review
Main camera Night mode samples - f/1.9, ISO 438, 1/20s - Zte Axon 20 5g review Main camera Night mode samples - f/1.9, ISO 1106, 1/17s - Zte Axon 20 5g review Main camera Night mode samples - f/1.9, ISO 994, 1/25s - Zte Axon 20 5g review
Main camera Night mode samples

2x zoom

There's not much to talk about the 2x zoom photos as they are a crop from the main sensor. The noise is more visible in this mode; sharpness and detail deteriorate fast as the light drops.

2x zoom low-light samples - f/1.9, ISO 1094, 1/17s - Zte Axon 20 5g review 2x zoom low-light samples - f/1.9, ISO 738, 1/20s - Zte Axon 20 5g review 2x zoom low-light samples - f/1.9, ISO 713, 1/17s - Zte Axon 20 5g review
2x zoom low-light samples

Ultra-wide camera

As expected, the ultra-wide camera's night performance isn't breaking anyone's expectations. The low-light photos with this camera lack detail, sharpness and look generally muddy. The biggest problem is the abundance of noise all around the scenes. Sadly, there's no Night mode for the ultra-wide camera available either. Hard to recommend using this camera when the light drops.

Ultra-wide low-light samples - f/2.2, ISO 788, 1/17s - Zte Axon 20 5g review Ultra-wide low-light samples - f/2.2, ISO 3712, 1/13s - Zte Axon 20 5g review
Ultra-wide low-light samples - f/2.2, ISO 831, 1/13s - Zte Axon 20 5g review Ultra-wide low-light samples - f/2.2, ISO 1400, 1/13s - Zte Axon 20 5g review
Ultra-wide low-light samples

Selfies

As one would expect, the Axon 20 5G's front-facing camera performs just like a first-gen product. It gets the job done but not very well. All of the selfies are fuzzy-looking, taking us back to the era of VGA cameras when this was standard.

Normal selfies - f/2.0, ISO 587, 1/33s - Zte Axon 20 5g review Normal selfies - f/2.0, ISO 232, 1/100s - Zte Axon 20 5g review Normal selfies - f/2.0, ISO 232, 1/100s - Zte Axon 20 5g review
Normal selfies - f/2.0, ISO 2109, 1/25s - Zte Axon 20 5g review Normal selfies - f/2.0, ISO 1323, 1/33s - Zte Axon 20 5g review
Normal selfies

The 32MP camera in this particular implementation struggles to deliver a sufficient amount of detail and it doesn't look sharp. While the subject's face might not look all that bad in some rare cases, the background always looks like a water-colored painting. The exposure metering is also a bit off and can sometimes make the subject's face too dark or clip it, depending on the ambient light. The skin color looks natural, though.

The portrait mode will reduce the size of the photos down to 5MP and will make them fuzzier. It makes it hard to distinguish the background from the foreground, and the subject just looks rough around the edges. Literally.

Portrait selfies - f/2.0, ISO 894, 1/50s - Zte Axon 20 5g review Portrait selfies - f/2.0, ISO 236, 1/100s - Zte Axon 20 5g review Portrait selfies - f/2.0, ISO 236, 1/100s - Zte Axon 20 5g review
Portrait selfies - f/2.0, ISO 2078, 1/25s - Zte Axon 20 5g review Portrait selfies - f/2.0, ISO 1323, 1/33s - Zte Axon 20 5g review
Portrait selfies

Portraits

Portraits are a bit on the soft side and look a bit noisy too. Skin tone looks natural, and colors in general pop. However, the bokeh effect itself isn't very convincing and oftentimes blurs the subject's hair in the process too. Even with not so challenging backgrounds.

Portraits - f/4.0, ISO 159, 1/33s - Zte Axon 20 5g review Portraits - f/4.0, ISO 325, 1/20s - Zte Axon 20 5g review Portraits - f/4.0, ISO 497, 1/33s - Zte Axon 20 5g review
Portraits

Video recording

The video recording in 4K is looking good and smooth. It's sharp, it's detailed, and there's virtually no noise. The contrast isn't over the top either. And given the thick layer of clouds above, the phone does a pretty good job of balancing the shadows and highlights too. Those are some challenging conditions.

Electronic image stabilization, or EIS, is available for 4K videos at 30fps, and it does a pretty good job too. However, support for 2160p@60fps is non-existent.

We also did a non-stabilized 2160p@30fps video just for comparison purposes.

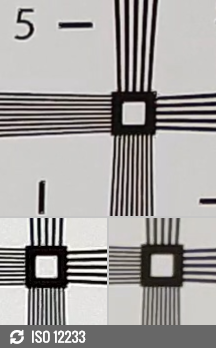

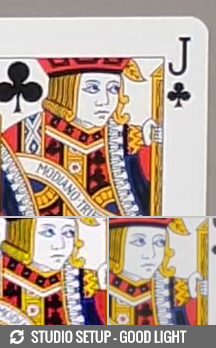

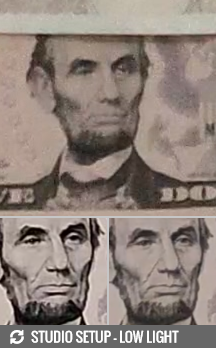

If you are done with the real-life footage, look at how the Axon 20 5G compares to some of its competitors.

Video Compare Tool Video Compare Tool Video Compare Tool
4K: ZTE Axon 20 5G vs OnePlus Nord and the Xiaomi Poco F2 Pro in our Video compare tool
